The Weibull++ version of SimuMatic allows you to transfer the calculated parameter values for each simulated data set to a new or existing Weibull++ standard folio, with one data sheet for each parameter of the model that was used to generate the data. Uncalculated data sets (i.e., those showing "N/A" in the parameter column of the SimuMatic folio) will be ignored.
To transfer data to a new folio, choose SimuMatic(W) > SimuMatic > Transfer Life Data to New Folio or click the icon on the control panel.
Select whether the data will be transferred to a free-form or times-to-failure data sheet in the window shown next.
After you click OK, a new standard folio will be created containing the simulated data in the selected format.
To transfer data to an existing folio, choose SimuMatic(W) > SimuMatic > Transfer Life Data to Selected Folio or click the icon on the control panel.

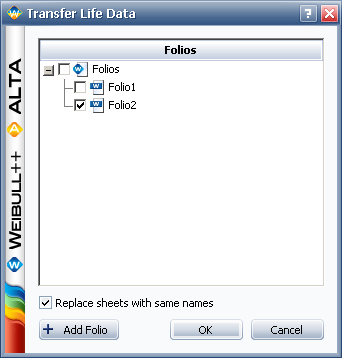

After you select whether the data will be transferred to a free-form or times-to-failure data sheet, the Transfer Life Data window will appear, as shown next.
Select the folio that the data will be transferred to.
If the Replace sheets with same names option is selected, then the software will replace any data sheets that have the same name as the data to be transferred. For example, if a selected folio already has a Beta sheet and you will be transferring beta values calculated in SimuMatic, then the software will replace the data in the current Beta sheet with the new beta values. If this option not selected, then the software will always create a new sheet in the selected folio.
Click the Add Folio button to automatically generate a blank Weibull++ standard folio and display it in the window.
