Weibull++ Quick Calculation Pad (QCP)

The Quick Calculation Pad (QCP) provides a quick and accurate way of calculating a variety of useful life data analysis metrics. To access the tool, click the QCP icon on the Main page of the control panel.

How to Use the QCP

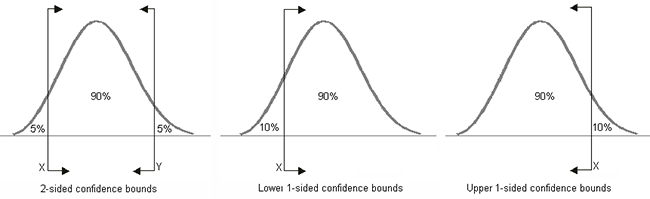

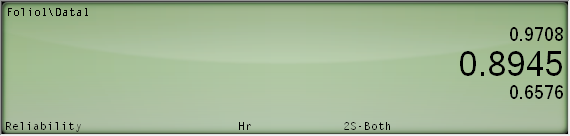

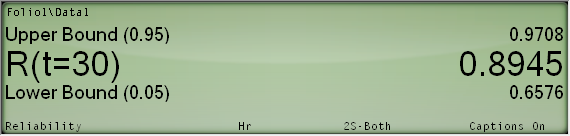

If you select Both One-Sided, the QCP will calculate both the lower one-sided bound and the upper one-sided bound.

Note: Confidence bounds calculation options are disabled when the underlying data type is free-form data.

Under the log display, you can also click Feed to "advance the tape" or Clear to delete all data from the current log. If you click inside the log, you can copy some or all of the text to the clipboard.

QCP Calculations

There are several types of calculations you can perform in the standard folio QCP. The calculations are based on the estimated parameters and other information from the current data sheet. Each type of calculation may require additional user inputs in order to solve for the metric of interest.

Probability

Calculates the probability that a new product will operate without failure for a given period of time. Enter the time at which you wish to calculate the reliability in the Mission End Time field. The mission is assumed to start at time = 0.

For example, a reliability of 90% for a mission end time of 3 years means that if 100 identical units are fielded, then 90 of them will still be operating at the end of 3 years.

Calculates the probability that a new product will be failed in a given period of time. Enter the time at which you wish to calculate the probability of failure in the Mission End Time field. The mission is assumed to start at time = 0.

Probability of failure is also known as unreliability, and it is the inverse of the reliability. For example, a probability of failure of 10% for a mission end time of 3 years is equivalent to a 90% reliability.

Calculates the probability that a product will successfully operate at a specific time interval given that it has operated successfully up to a specified time. Enter the start time of the interval in the Mission Start Time field and enter the duration of the interval in the Mission Additional Time field.

For example, a product may have a reliability of 90% for 3 years. If the product has operated for 2 years without failure, the conditional reliability for an additional year (for a total of 3 years of operation) may be 95%.

Calculates the probability that a product will be failed at a specific time interval given that it has not failed up to a specified time. Enter the start time of the interval in the Mission Start Time field and enter the duration of the interval in the Mission Additional Time field.

For example, a product may have a 10% probability of failure for 3 years. If the product has operated for 2 years without failure, the conditional probability of failure for an additional year (for a total of 3 years of operation) may be 5%.

Life

Calculates the estimated time at which a specified reliability value will be achieved. Enter the reliability goal in the Required Reliability field. For example, a goal of 90% reliability with a reliable life of 4 years means that if 100 identical units are fielded, then 90 of them will be still be operating at the end of 4 years.

What's Changed? In previous versions of Weibull++, this calculation was called "Warranty Time".

Calculates the estimated time at which a specified probability of failure will be achieved. Enter the probability of failure in the BX% Life At field. For example, a B10 life of 4 years means that 10% of the fielded units are expected to be failed at the end of 4 years of operation (note that this is equivalent to a 90% reliability with a reliable life of 4 years).

Note: In the early days of reliability engineering, bearing manufacturers used the term "B10 life" to refer to the time by which 10% of the components would fail. Keeping with tradition, ReliaSoft retained this nomenclature but replaced "10" with "X," since the software allows you to get this information at any percentage point and not just at 10% (e.g., B1, B5, etc.).

Calculates the average time at which a product is expected to operate before failure. In the Weibull++ standard folio, the mean life is the mean time to failure (MTTF). For example, assume you tested three identical units starting from time = 0 until all of the units have failed. The first unit failed at 10 hours, the second failed at 12 hours and the third failed at 13 hours. The MTTF is the average of the three failure times, which is 11.67 hours.

Note: The term mean time to failure (MTTF) is used as a metric for the analysis of non-repairable components. In the Weibull++ standard folio, all data are assumed to come from non-repairable components that are independent and identically distributed (i.i.d.). On the other hand, the term mean time between failures (MTBF) is used as a metric in repairable systems analysis, where the same system may fail and be repaired multiple times. To analyze simple repairable system data in Weibull++, use the recurrent event data analysis (RDA) folios.

For more complex repairable system analyses, see ReliaSoft’s BlockSim and RGA++ software.

Rate

Calculates the instantaneous number of failures per unit time that can be expected at a certain time given that a unit survives to that age. Enter the time at which you wish to calculate the failure rate in the Mission End Time field.

For example, a failure rate of 0.01 at 100 hours means that each unit that survives to 100 hours has approximately a 1% probability of failure in the next hour.

Bounds

Calculates the upper and lower 1- or 2-sided confidence bounds on the parameter estimates. The result allows you quantify the amount of uncertainty in the estimates. Click Calculate to open the Results window, which displays the confidence bounds on the parameters.
